Y series dav dav ntsuas ntsuas

Txoj haujlwm ua haujlwm:

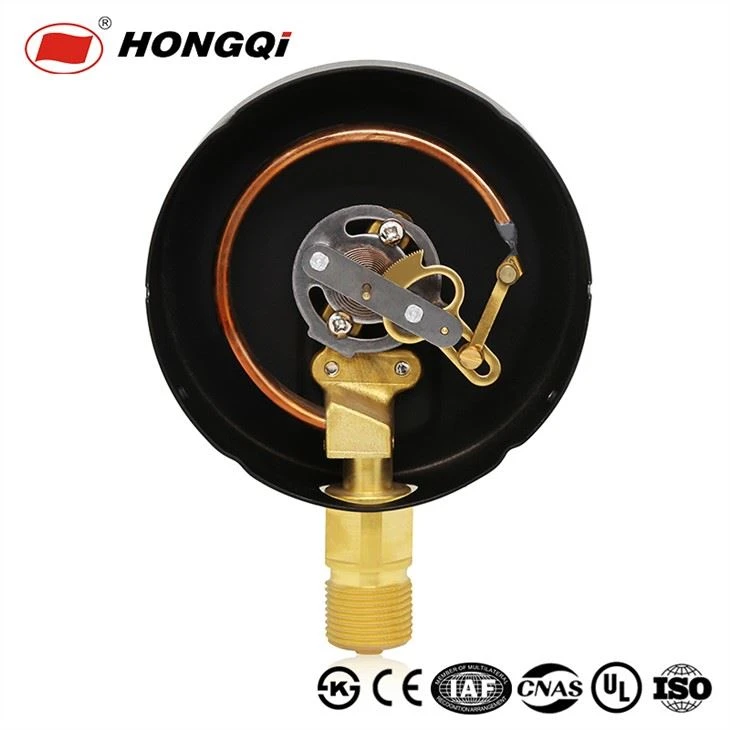

Lub siab ntsuas los ntawm elastic deformation ntawm lub ntsiab lus rhiab nyob rau hauv lub rooj - bourdon raj, los ntawm kev hloov dua siab tshiab mechanism ntawm lub zog nyob rau hauv lub rooj, lub elastic deformation ntawm lub bourdon raj yog hloov dua siab tshiab rau hauv teb txav, ua rau lub pointer deflector los tso saib lub siab.

Bourdon raj tau muab faib ua C - hom yeeb nkab, coil reed yeeb nkab, kauv yeeb nkab thiab lwm yam. Feem ntau siv cov khoom siv txias hardening hom (cov khoom siv feem ntau yog tooj liab alloy), nyob rau hauv lub xeev annealing muaj siab plasticity, tom qab txias ua hauj lwm hardening thiab zoo kho kom tau siab elasticity thiab lub zog.

C- hom bourdon tube sensor seem yog elliptical, thiab lub siab ntawm qhov ntsuas nruab nrab ua rau sab hauv ntawm lub raj bourdon, kom cov ellipse seem ntawm Bourdon raj zoo li ncig.Vim qhov me me deformation ntawm bourdon raj, ib qho kev ntxhov siab ntawm lub nplhaib yog tsim los rau lub taub hau ntawm lub nplhaib. ib qho elastic bourdon raj tsis ruaj, me me deformation tshwm sim.

Installation hom:

1) Radial ncaj qha installation

2) Tom qab radial band

3) Axial direct installation

4) pem hauv ntej ntawm axial cheeb tsam

Kev ceev faj rau kev siv:

1) Kev ua haujlwm siab yog tsim nyog siv 1/3 ~ 2/3 ntawm tag nrho cov ntau yam, thiab qhov siab tshaj plaws yuav tsum tsis pub tshaj 3/4 ntawm tag nrho cov nplai.

2) Lub voj voog pov thawj feem ntau tsis ntau tshaj li ib nrab xyoo, qhov ntsuas qhov siab ntawm qhov nruab nrab hloov pauv, kev siv ntau zaus, cov kev xav tau raug siab, thiab cov kev cai nruj rau kev nyab xeeb, lub voj voog pov thawj tuaj yeem tsim nyog luv luv raws li qhov xwm txheej tshwj xeeb.

3) Qhov chaw ua haujlwm yuav tsum tsis muaj roj corrosive.

Siab Gauge Specification

Txoj kab uas hla	1.5", 2", 2.5", 3", 4", 6", 8", 10"
Siab ntau	- 0.1 - 0 -100Mpa
Case	Dub steel cas
Nplhaib	Dub hlau
Kev txav mus los	tooj dag
Qhov (socket).	tooj dag
Kev sib txuas qhov ntau thiab tsawg	1/8, 1/4, 3/8 thiab 1/2 nti
Kev sib txuas xov	NPT, BSP (G, PF), BSPT (ZG, PT)
Kev sib txuas mounting	hauv qab, saum, sab laug, sab xis, nruab nrab
Bourdon cev	stainless hlau, phosphor bronze
Dial thiab pointer	aluminium
Dial phaj	ib leeg lossis dual nplai (psi, kpa, mpa, bar, kg / cm2 ... 11units avaible)
Qhov rai	Daim iav, PC iav ...
Ntau qhov tseeb	1%, 1.6%, 2.5% tag nrho teev
Ua haujlwm kub	-40℃- 70 degree
Filled nruab nrab	N/A
Filling cap	Tsis puv
