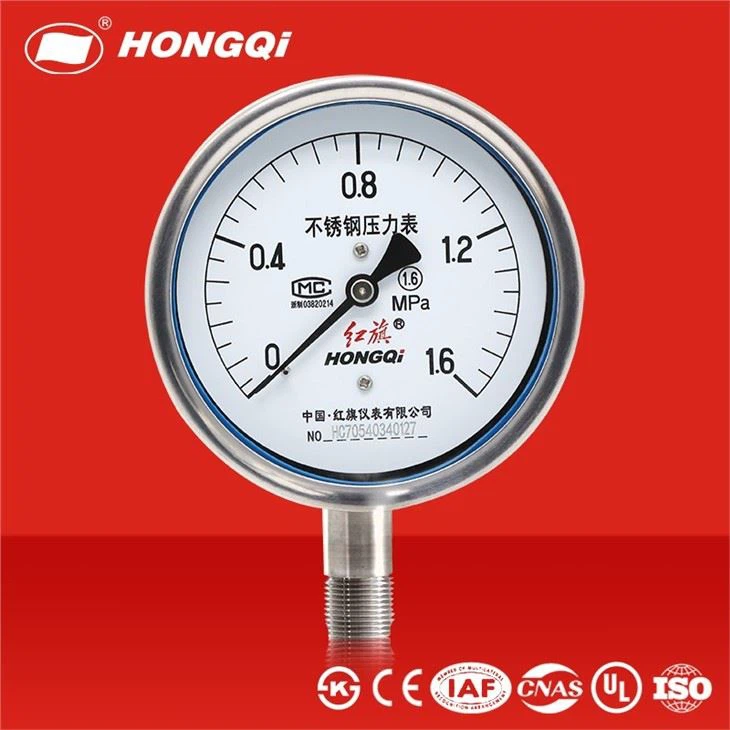

4 "316L Stainless Hlau Siab Gauge Liquid Filled Manometer

4 "316L Stainless Hlau Siab Gauge Liquid Filled Manometer

Cov chav kawm raug: ± 1.0%, 1.5%, 1.6%, 2.5%

Xov: 1/2; 1/4; 1/8; 3/8; NPT/PT/; M20 * 1.5; M14 * 1.5

Cov ntaub ntawv: 304SS, 316SS, 316LSS

Qhov ntev: 60-M14 x1.5; Z1/4(NPT); 100/150-M20 x1.5; Z1/2; Z1/4 (NPT)

Lub nplhaib khoom siv: AISI 304 SS, crimped nplhaib, bayonet nplhaib

Bourdon Tube: Stainless hlau

Socket: Stainless hlau socket

Peb tuaj yeem lees txais cov neeg siv khoom xaj nrog qhov yuav tsum tau tshwj xeeb rau ntsuas ntsuas thiab ntsuas!

Stainless hlau siab gauge yog corrosion- tiv taus ntsuas ntsuas ntsuas ua los ntawm cov khoom siv hlau stainless, feem ntau yog siv rau hauv qhov kub thiab txias, muaj zog corrosion, thiab siab vibration ib puag ncig hauv kev lag luam xws li roj av, tshuaj, metallurgical, thiab lub zog. Nws cov qauv muaj xws li cov kev taw qhia siab, lub iav kis tau tus mob, cov cuab yeej nyeem ntawv, thiab lub tsev kaw. Lub cev tseem ceeb yog ua los ntawm icr18Ni9T, Ocr18Ni12Mo2Ti, thiab 316 stainless hlau cov ntaub ntawv.
Kev ntsuas qhov ntsuas ntawm qhov ntsuas no suav nrog -0.1 txog 160MPa, nrog qhov tseeb ntawm ± 1.0%, ± 1.6%, thiab ± 2.5%. Nws txhawb kev tshawb nrhiav cov pa roj, kua, thiab vapor media. Cov khoom tseem ceeb kis tau siab los ntawm elastic deformation, thiab cov khoom lag luam poob siab siv lub plhaub ntim nrog cov roj silicone los yog glycerin rau cushion vibration, nrog kev tiv thaiv qib ntawm IP54 txog IP66. Peb muab ntau yam threaded interfaces xws li M14 × 1.5 thiab G1/4, nrog ib tug haum kub ntawm -40℃mus rau 70℃(tsis muaj kua filling nyob rau hauv lub plhaub) los yog -25℃mus rau 70℃(nrog kua filling nyob rau hauv lub plhaub). Thaum lub sij hawm installation, txoj hauj lwm ntawm lub siab ntsuas taw tes yuav tsum tau kho raws li theem ntawm lub xeev ntawm nruab nrab, thiab calibration thiab tu yuav tsum tau nqa tawm los xyuas kom meej ntsuas qhov tseeb.
Lub ntsuas ntsuas tau txais kev sib cuag ncaj qha thiab cov khoom siv ntsuas siab, siv icr18Ni9T, Ocr18Ni12Mo2Ti, sus316, nrog cov qauv kaw tag nrho. Stainless hlau siab ntsuas ntsuas muaj zog tiv thaiv corrosion ntawm qhov ntsuas nruab nrab thiab ib puag ncig corrosion. Stainless hlau siab gauges yog tsim rau cov xov xwm uas muaj zog corrosiveness thiab rau kev kuaj stainless hlau Cheebtsam nyob rau hauv hnyav sab nraud corrosive ib puag ncig. Stainless hlau siab gauges yog dav siv nyob rau hauv kev lag luam xws li roj av, tshuaj, thiab metallurgy.
Lub ntsuas hluav taws xob stainless hlau muaj lub siab qhia qhov system (xws li cov pob qij txha, lub caij nplooj ntoos hlav, ntws txwv cov ntsia hlau, thiab lwm yam), lub iav kis tau tus mob, cov cuab yeej nyeem ntawv (pointer thiab dial), thiab vaj tse (xws li rooj plaub, npog, iav, thiab lwm yam).
Lub ntsuas ntsuas siab qhia lub siab los ntawm elastic deformation ntawm stainless hlau rhiab ntsiab lus (Bourdon raj, bellows, bellows) nyob rau hauv lub ntsuas, uas yog ces kis mus rau lub pointer los ntawm kev hloov dua siab tshiab mechanism ntawm lub zog nyob rau hauv lub ntsuas, ua rau lub pointer tig.
Rau cov twj paj nruag uas muaj cov kua dej (feem ntau yog cov roj silicone lossis glycerin) hauv lub casing, nws tuaj yeem tiv taus qhov chaw ua haujlwm hnyav thiab txo qhov cuam tshuam ntawm lub zog nruab nrab.
